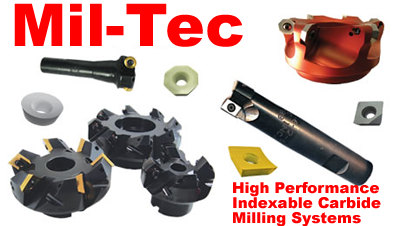

| The MIL-TEC FREEDOM CUTTER� System is an innovative approach to high performance, system based milling. It incorporates interchangeable, application based insert geometrics in a single patented pocket design. Simply by changing the insert the operator can adjust the geometry of the cutter to accomidate the application at hand. This concept of multiple and interchangeable geometric configurations allows the FREEDOM CUTTER� System to offer both performance and diversity of tool geometry that is unparalleled in the industry, making the vast majority of indexable-inserted milling cutters available in today's market obsolete. | |
| Freedom Cutter Shell and Face Mills |   |
|
Freedom Cutter Plus Shell Mill Accepts all three insert shapes Freedom Cutter Plus Large Diameter Face Mill Counterbore Design Attaches directly to spindle Freedom Cutter Plus Large Diameter Face Mill Flat Back Design Used with Standard Shell Mill Holders Freedom Cutter Plus 45 Shell Mill 45� Lead Angle Dedicated Finishing Freedom Cutter Shell Mill Dedicated Finisher/ Wiper for exceptional finish and flatness Freedom Cutter Shell Milll with Coolant Hole Designed for air or fluid coolant Freedom Cutter with Square Insert Support Shell Mill Extended pocket shoulder provides additional corner support Freedom Cutter with Aluminum Construction Shell Mill Extremely light body Freedom Cutter Ramp and Plunge Shell Mill Ramps up to 30� |
|
| Freedom Cutter Shank Style Bodies |  |
|
Freedom Cutter w Extended Reach Shank Style Body Accepts all three insert shapes Freedom Cutter w Integral R8 Shank Accepts all three insert shapes Freedom Cutter Chamfer Mills w/ Shank Style Body Uses Standard Square FC insert Dedicated Finishing Freedom Cutter w/ Shank Style Body Dedicated Finisher/ Wiper for exceptional finish and flatness Freedom Cutter Ramp and Plunge Shank Style Body Ramps up to 30� - Accepts all three insert shapes |
|
| Freedom Cutter Inserts |  |
| HV3HD High Velocity End Mill Series |  |
|
HV3HD Cutter Bodies (Shank Style) HV3HD SS Super Shear High Dish Inserts For aluminum and non ferrous HV3HD PS Power Shear Medium Dish Inserts For steels, stainless, other high hardness materials |
|
| HV5HD High Velocity End Mill Series |  | |
| Positive geometry / Free Cutting, cuts a 90 deg corner, cuts more like solid carbide than ADKT Style End Mills |
|
HV5HD Cutter Bodies (Shank Style) HV5HD Cutter Bodies (Shell Mill Style) HV5HD SS Super Shear High Dish Inserts For aluminum and non ferrous HV5HD PS Power Shear Medium Dish Inserts For steels, stainless, other high hardness materials |
|
| HV10HD High Velocity End Mill Series |  | |
| Positive geometry / Free Cutting, up to .950 cutting length |
|
HV10HD Cutter Bodies (Shank Style) HV10HD Cutter Bodies (Shell Mill Style) HV10HD SS Super Shear High Dish Inserts For aluminum and non ferrous HV10HD PS Power Shear Medium Dish Inserts For steels, stainless, other high hardness materials |
|
| HD Heavy Duty Series |  | |
| Features a 1" IC Carbide Insert |
|
HD Shell Style HD RPX Shell Style HD RPX Shank Style Super Shear High Dish Inserts Power Shear Medium Dish Inserts NP Negative/Positive Frustroconical Land Inserts |
|
|
